What does GSM mean in fabric?

GSM stands for Grams per Square Meter (g/m²). It measures the weight and area density of fabric. A higher GSM indicates a thicker, heavier fabric, while a lower GSM indicates a lighter fabric.

How does a GSM cutter machine work?

A circular GSM cutter machine cuts an exact 100 cm² specimen of fabric (approx. 11.28 cm diameter). Placing this cut sample on a digital weighing scale gives the sample weight in grams, which is then multiplied by 100 to determine the exact GSM value.

Why is a 100 cm² cut used for measuring GSM?

Because 1 square meter equals 10,000 square centimeters. A 100 cm² sample represents exactly 1/100th of a square meter, making GSM conversion effortless (GSM = Weight of sample in grams x 100).

Free Professional Textile Tool

Fabric GSM Calculator for Knits, Woven & Weight

Determine Grams per Square Meter (GSM) for knitted and woven fabrics or calculate fabric roll weight. Supports custom unit dropdowns (Inches, CM, Meters, Kg, Lbs, Oz) for real-time calculations.

ISO Textile Standard Compliant Multi-Unit Support (Inches, CM, Meters, Kg, Lbs) GSM to oz/yd² Conversion

Industry Presets:

Knitted Fabric Parameters

Enter width in inches (or convert from cm/m) and meters per kg yield.

Fabric Width:

Meters per Kg (m/kg):

m/kg

Standard length yielded by 1 kilogram of tubular or open-width knit fabric.

Calculation Result ISO Certified Standard

Estimated Knitted GSM:

187.48g/m²

≈ 5.53 oz/yd²

Calculation Breakdown:

• Fabric Category: Knitted Construction

• Cut Width: 60 in (60 in)

• Yield Spec: 3.5 m/kg

• Calculated Density: 187.48 g/m²

Need custom fabric manufacturing?

We supply certified GRS Knitted & Woven fabrics globally.

Request Quote

Quality Control Standard

How Fabric GSM is Measured in Textile Laboratories

GSM stands for Grams per Square Meter (g/m²). Instead of manually unfolding a full 1-meter square of fabric, textile quality assurance labs use a standardized GSM Circular Cutter and a precision digital weighing scale.

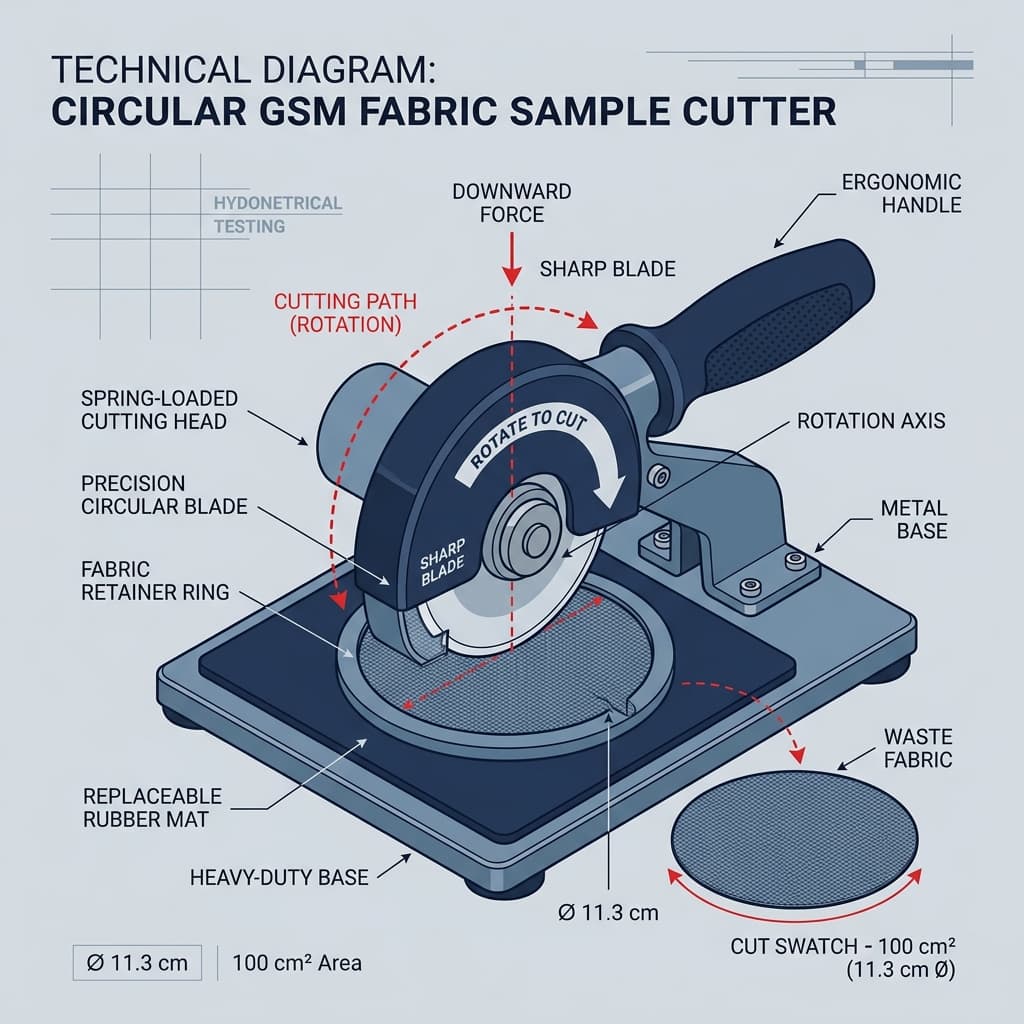

GSM Round Cutter Machine Cutting 100 sq cm Fabric Swatch

The 100 cm² Circular GSM Cutter

A heavy-duty GSM Round Cutter equipped with razor-sharp rotary blades cuts an exact circular specimen of 100 cm² area (diameter ≈ 11.28 cm) on a specialized rubber cutting pad.

Sample Cut Area:

100 cm² (1/100th of 1 m²)

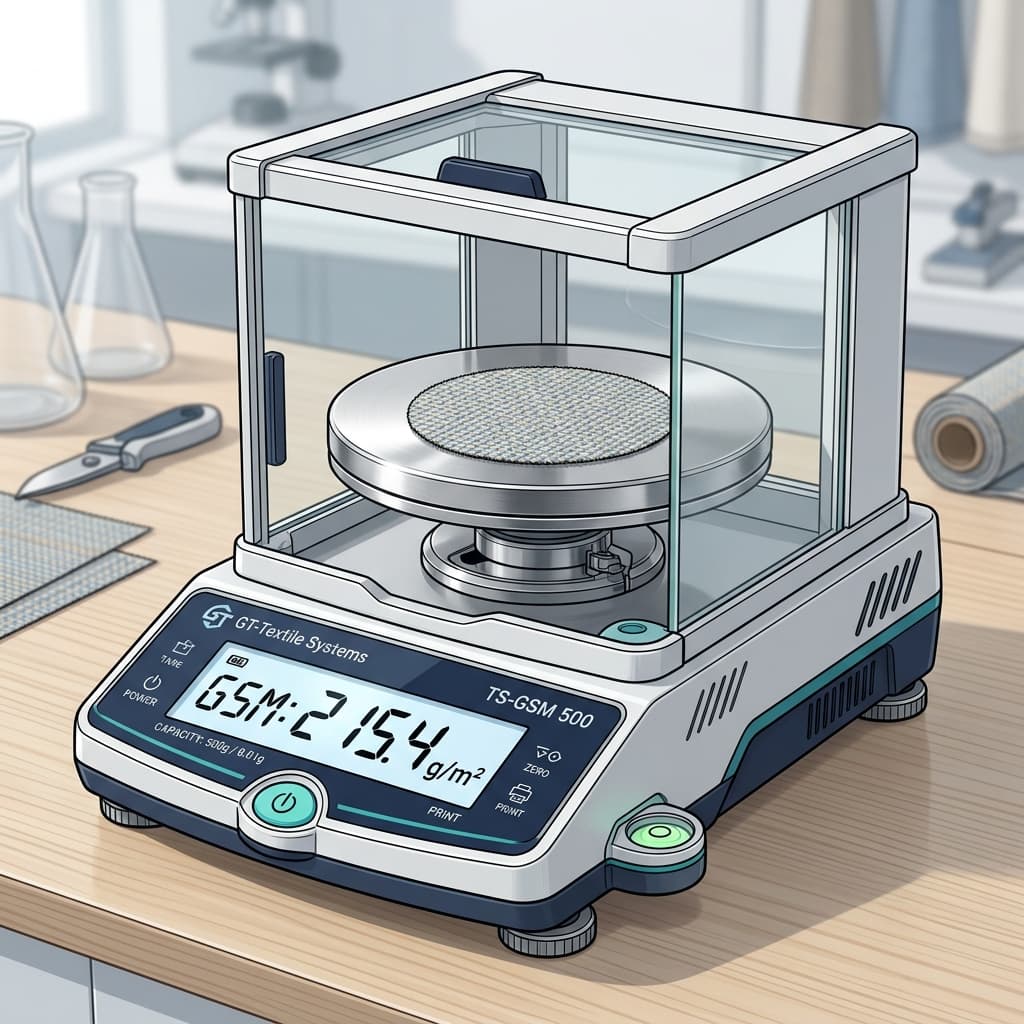

Precision Digital GSM Scale Weighing Fabric Sample

Precision Digital Scale & Multiplier

The cut circular sample is placed onto an electronic balance calibrated to 0.01g accuracy. Since 1 square meter is 10,000 cm², multiplying the sample weight in grams by 100 yields the exact GSM.

Measurement Formula:

GSM = Weight of 100 cm² sample (in grams) × 100

Practical Example in Quality Control:

If a 100 cm² circular fabric sample placed on the digital balance weighs 1.80 grams, multiplying by 100 gives an exact fabric density of 180 GSM (g/m²).

Standard Textile GSM Reference Chart

Typical GSM ranges, fabric types, and garment applications produced by S S Global Textiles.

Fabric Category	Fabric Structure	Typical GSM Range	Common Garment End Uses
Lightweight Knits	Single Jersey, Slub Jersey	130 – 170 GSM	T-Shirts, Innerwear, Lightweight Tops
Medium Weight Knits	Pique, Interlock, Rib 1x1	180 – 240 GSM	Polo Shirts, Dresses, Babywear
Heavyweight Knits	French Terry, Fleece	260 – 380 GSM	Hoodies, Sweatshirts, Joggers
Light Woven	Cotton Poplin, Voile, Chiffon	90 – 140 GSM	Formal Shirts, Blouses, Dress Linings
Medium Woven	Twill, Duck Canvas, Chambray	180 – 280 GSM	Chinos, Uniforms, Workwear Jackets
Heavy Woven	Denim, Heavy Canvas	350 – 480 GSM (10-14 oz)	Jeans, Heavy Outerwear, Bags

FAQ

Frequently Asked Questions about GSM

What does GSM stand for in textiles?

GSM stands for Grams per Square Meter. It defines the metric mass density of fabric per square meter. A higher GSM value signifies a heavier and denser fabric construction.

How does a circular GSM cutter work?

A GSM round cutter uses razor-sharp circular blades to punch out an exact 100 cm² fabric sample. Placing this sample on a digital scale (which reads in grams) and multiplying by 100 gives the precise GSM value without having to cut an entire 1-meter square of fabric.

How do I convert GSM to oz/yd² (ounces per square yard)?

To convert GSM to ounces per square yard (oz/yd²), multiply the GSM value by 0.0294935. For example, 200 GSM × 0.0294935 = 5.9 oz/yd².

Can S S Global Textiles manufacture fabrics to custom GSM specifications?

Yes! S S Global Textiles manufactures custom knitted and woven fabrics according to exact buyer GSM targets, width requirements, color pantones, and GRS (Global Recycled Standard) certifications.
